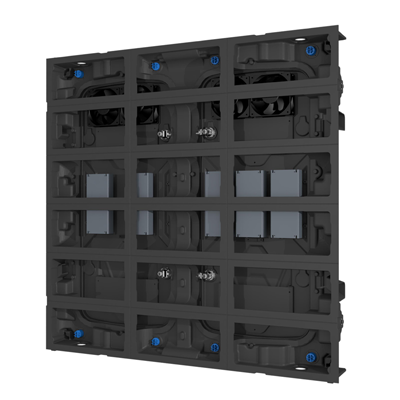

将军系列背面01

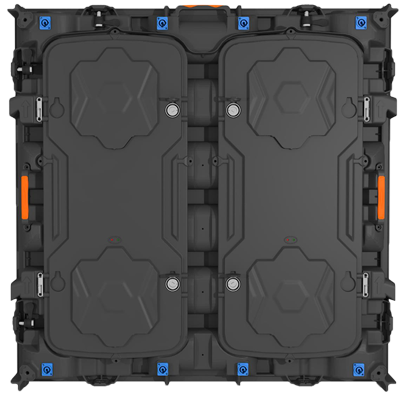

将军系列正面01

Outdoor large format LED sign

Large format LED sign allow big brand impact and communications due to the very unique location, the very advantage of the LED sign is to ensure fresh and dynamic image and high frenquency reach audience. Yealux General series apply common cathode tech for reducing heat transformation, which can reduce affect on LEDs life and save the LED sign power consumption.




Outdoor Specs



Outdoor Product Model

YL-OH4O

YL-OH5O

YL-OH8O

YL-OH10O

LED

Type

SMD 3 in 1

Brand

SMD 1921

SMD 1921

SMD 2727

SMD 2727

Module

Pixel Pitch

4 mm

5 mm

8 mm

10 mm

Pixel Density

62,500 dots/㎡

40,000 dots/㎡

62,500 dots/㎡

10,000 dots/㎡

Pixel Configuration

1R 1G 1B

Module resolution

80Wx 40H=3,200dots

64(Wx 32H=2,048dots

40(Wx 20H=800dots

32(Wx 16H=512dots

Module size

W320mmH160mm

Cabinet

Cabinet resolution

240Wx 240H= 57,600dots

192Wx 192H= 36,864dots

120Wx 120H= 14,400dots

96Wx 96H= 9,216dots

Cabinet size

W960mmH960mm

Cabinet area

0.9216

Cabinet weight

26Kg

Standard Brightness

> 5000nits

> 5000nits

> 5500nits

> 5500nits

Viewing angle

H: 160±10°;    V: 100±10°

Refresh rate

3840Hz

Contrast@40lux

8000:1

Power input

AC100V to AC240V50 or 60 Hz

Max Power consumption@230v

600W /cabinet

Average consumption

200W /cabinet

Cabinet material /color

Die-casting, Black/Grey/White

Maintenance

 Front/Rear

Surface flatness

≤1 mm/m

MTBF

10,000H

Life time

50,000H

IP rate

IP65

Operation environment

Temp-20℃50℃Humidity10% - 90%RH

Certification

CE, ROSH, FCC, IP65

Installation Way

Stacking









Indoor Specs



Indoor Product Model

YL-OH2.5I

YL-OH3I

YL-OH4I

YL-OH5I

LED

Type

SMD 3 in 1

Brand

SMD 2020

SMD 2020

SMD 2727

SMD 2727

Module

Pixel Pitch

2.5 mm

3.076 mm

4 mm

5 mm

Pixel density

160,000 dots/㎡

105625 dots/㎡

62,500 dots/㎡

40,000 dots/㎡

Pixel configuration

1R 1G 1B

Module resolution

128(Wx 64H=8,192dots

104(Wx 52H=5,408dots

80(Wx 40H=3,200dots

64(Wx 32H=2,048dots

Module size

W320mmH160mm

Cabinet

Cabinet Resolution

384Wx 192H= 73,728dots

208Wx 156H= 32,448dots

160Wx 120H= 19,200dots

128Wx 96H= 12,288dots

Cabinet size

W640mmH480mm

Cabinet weight

8Kg

Cabinet area

0.3072

Standard brightness

> 800nits

> 800nits

> 1200nits

> 1200nits

Viewing angle

H: 160±10°;    V: 160±10°

Refresh rate

3840Hz

Contrast@40lux

>4000:1

Input Power

AC100V to AC240V50 or 60 Hz

Max power consumption@230v

<  200W /Cabinet

Average consumption

< 70W /Cabinet

Cabinet material/color

Die-casting, Black/Grey/White

Maintenance

 Front/Rear

Surface flatness

≤1 mm/m

MTBF

10,000H

Life time

50,000H

IP rate

IP30

Operation environment

Temp-20℃-40℃Humidity10% - 80%RH

Certification

CE, ROSH,FCC

Installation Way

Stacking
