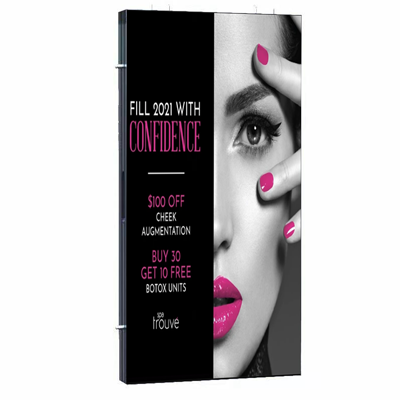

Retail shop shelf LED screen system

Visual merchandising has a very important application in the visual design of retail stores. Regardless of sports brands, beauty brands, and consumer electronics brands, in its chain store display system, shelves are the traffic focus. Yealux Tech developed shelf display screen is lightweight, easy to install and disassemble, and can be assembled in any combination.

ꄲNext： Retail digital shopping guide display system

Model	YL-B1.2	YL-B1.5	YL-B1.8
Pixel Pitch	1.2mm	1.5mm	1.8mm
Screen Resolution	256（W）x 512（H）	208（W）x 416（H）	172（W）x 344（H）
Screen Size	W：320mm；H：640mm
Frame Material and Color	Die-casting Aluminum/Grey/White
Screen Weight	8Kg
Maintenance	Front
IP Rating	IP30
Brightness	350 nits
Viewing Angle	H：170°±5°； V：170°±5°
Refresh Rate	3840 Hz
Contrast Ratio	4000:1
Processing Depth	18 bits
HDR	HDR10
Input Voltage	AC100 V to AC240 V；50 or 60 Hz
Maximum Power	3Kw/Screen
Average Power	600W/Screen
Lifespan	100,000 Hours
Operation Environment	Temp：-10 ℃－40 ℃； Hum：10% - 80% RH
Operating system	Windows and Android
Input interface	USB, HDMI, Ethernet, Remote controller

*All specifications are correct at time of print, but they are subject to change without further notice. All rights are reserved to YEALUX.
